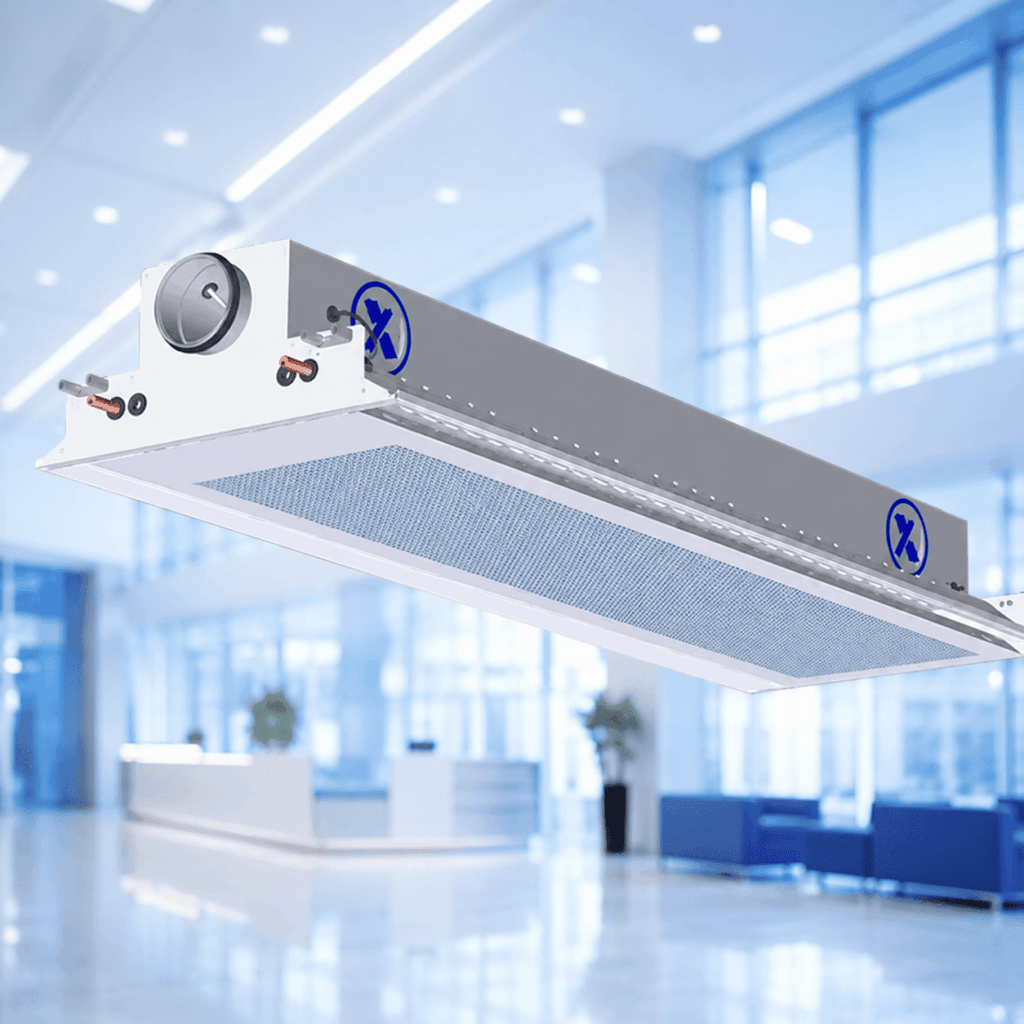

SVALBARD-I COMFORT SERIES
Active chilled beam with variable air flow.
Can be built into various types of ceilings
Lengths 1200, 1800 and 2400 mm
Pressure independent VAV function
Constant induction coefficient, even with variable air flow
Bluetooth app for easy commissioning and maintenance
Calculation and 3D modeling in the AURASIM program
Air flow control reduces noise levels
Enlarged heat exchanger for the highest possible cooling capacity
Fully featured device reduces installation time and costs
Description
Svalbard-I Comfort is used in ventilation systems and water cooling systems, as well as for heating offices, conference rooms, training rooms, etc. Chilled beams provide high cooling capacity without drafts in the work area. Svalbard-I Comfort can be built into various types of modular ceilings with a side of 600 mm. Operating costs are reduced by increasing cooling capacity with less air consumption. This provides optimal comfort and reduces energy consumption.
Application
Svalbard-I Comfort is made of galvanized steel, powder coated RAL 9003 gloss level 30. The measuring cross is made of aluminum, tubes, fittings and motor housing are made of plastic. The heat exchanger is made of copper pipes with aluminum fins. The connection pipe to the air duct is equipped with an EPDM rubber seal.
Installation
The Svalbard-I Comfort kit includes four mounting brackets that must be attached to the ends of the beam through the rectangular holes located in them. During installation, it is possible to adjust the position of the beam using holes in the brackets by +/- 10 mm horizontally and vertically using studs. When attaching studs to a concrete floor, it is recommended to use anchors or similar components.
