VS-TRD SERIES
Frontal air speed sensor for controlling variable flow systems. Regulation is carried out in accordance with the request for the exhaust air flow rate in fume hoods
Non-contact measurement of air speed in the frontal section, eliminating equipment wear
For fume hoods with vertical and horizontal screens
Automatic detection of thermal load
Easy installation into a drilled hole in the fume hood dome. Also suitable for multiple fume hoods installed in a row
Cable with connectors
Measuring range: 0 – 1 m/s
Additional sensor applications
For monitoring air speed in the front section of fume hoods using TFM-2/TPM devices
Design

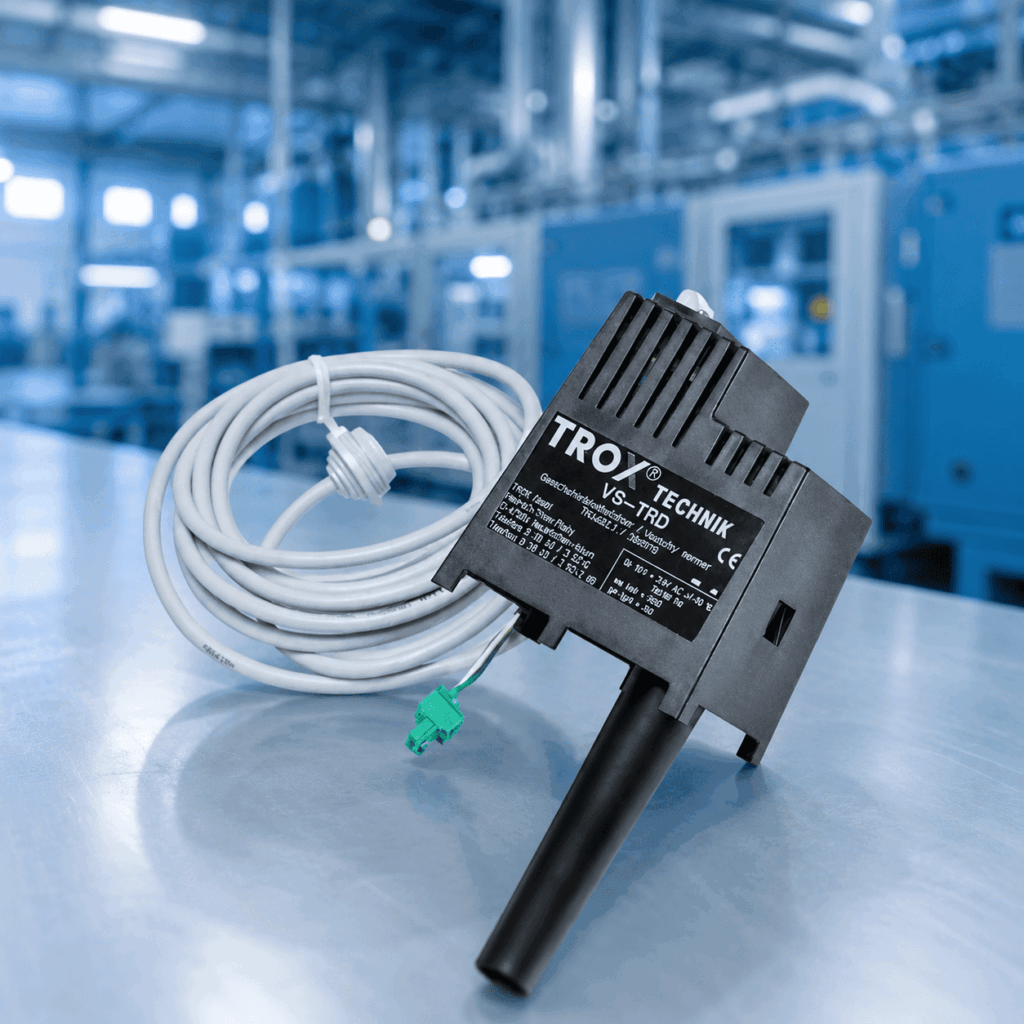

Frontal air speed sensor, VS-TRD series, for LABCONTROL system
To control variable flow fume hood systems according to actual demand
Connection to EASYLAB TCU3 controller, TCU-LON-II controller or TFM-2-TPM monitoring systems
Regulation based on fume hood screens
For fume hoods with vertical and horizontal screens, as well as with screens on both sides
Increased safety for personnel working in laboratories
For use in laboratories and clean rooms in pharmaceutical and semiconductor manufacturing
Characteristics

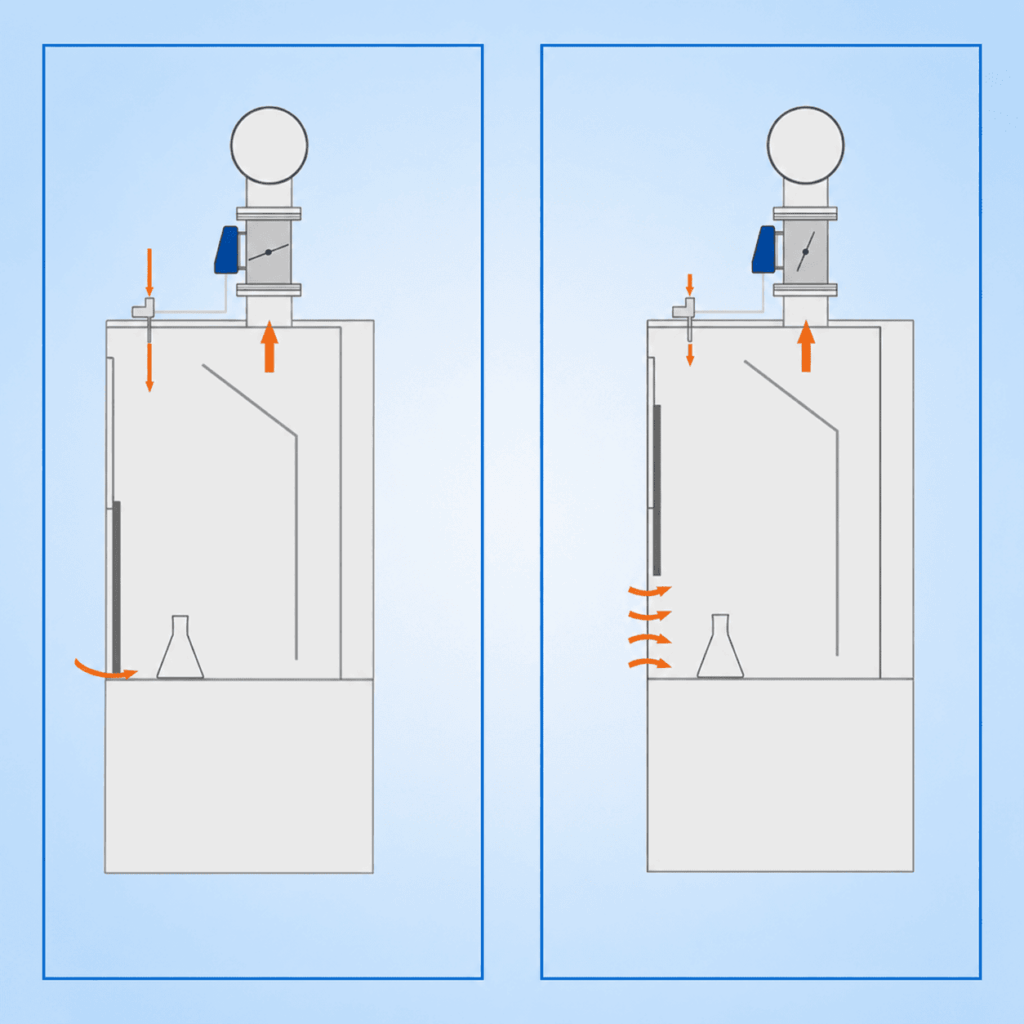

Control fume hoods according to actual demand by adjusting the screen position
Recording air speed in the front section of fume hoods with vertical and horizontal screens, as well as for two screens
Non-contact measurement of air speed in the frontal section, eliminating equipment wear
Constant frontal air velocity (0.5 m/s typical) within a specified flow range thanks to cascaded speed and flow control
Sensing and safely dissipating heat load by automatically increasing air flow
