For horizontal radial supply air supply, with fixed guide vanes, diffuser face made of aluminum

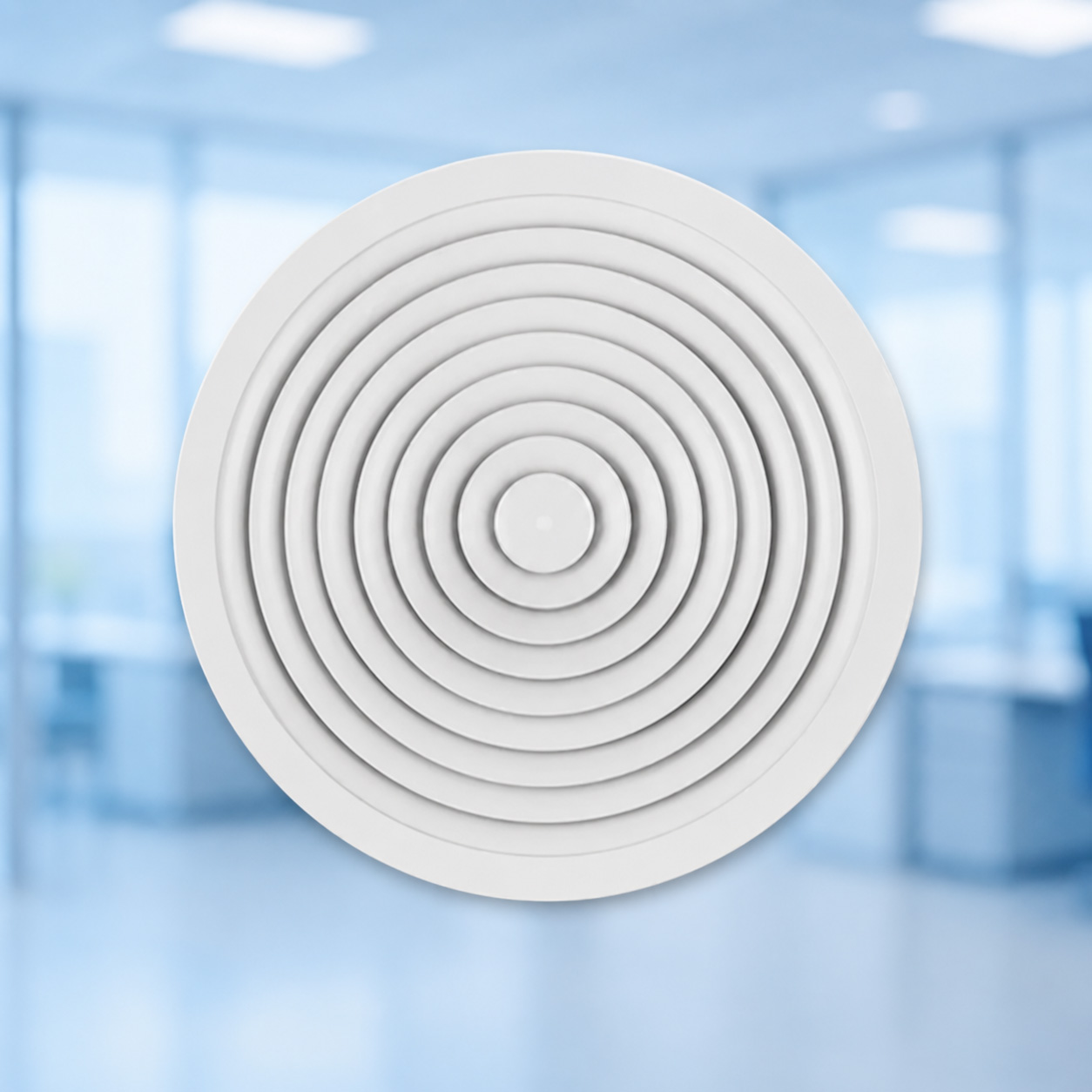

Round and square ceiling diffusers for radial air distribution, for a high level of comfort, ideal for installation in suspended ceilings
Sizes 1, 2, 3, 4, 5, 6, 7, 8
Air flow level 20 – 650 l/s or 72 – 2340 m³/h
Round or square bezel
Front panel made of aluminum with anodized finish
For supply and extract air
For systems with variable and constant air flow
For installation in continuous suspended plasterboard ceilings or raster ceilings
Rapid equalization of temperatures and reduction of air flow speed is achieved due to the high level of ejection
Additional equipment and accessories
The diffuser front panel can be painted in RAL CLASSIC colors

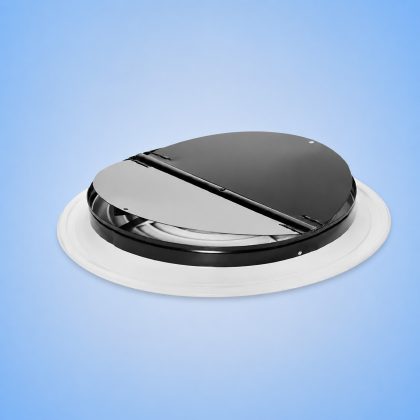

Horizontal or vertical duct connection

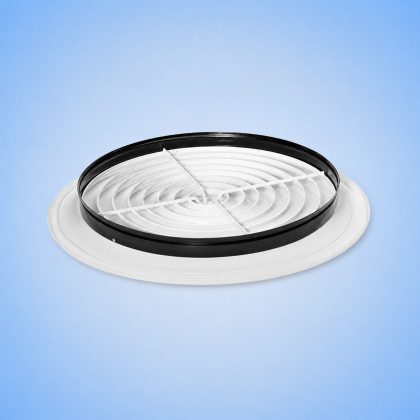

Plenum box with measuring point and valve flap with flexible rod
Application
ADLR series ceiling diffusers are suitable for supply or exhaust ventilation to create comfortable indoor conditions
An attractive design element for architects and clients with high aesthetic requirements
Horizontal radial air supply for mixing air flows
Rapid equalization of temperatures and reduction of air flow speed is achieved due to the high level of ejection
For systems with variable and constant air flow
Temperature difference between supply air and room air from –10 to +10 K
For rooms with ceiling heights up to 4 m (lower edge of suspended ceiling)
For installation in continuous suspended plasterboard ceilings or raster ceilings
Characteristics
Horizontal fan-shaped supply of supply air
Aluminum front panel
For installation in continuous suspended plasterboard ceilings or raster ceilings
Horizontal or vertical duct connection
Standard sizes
Round faceplate: 244, 300, 356, 412, 468, 542, 598, 654
Square bezel: 593, 598, 618, 623
Diffuser: 1, 2, 3, 4, 5, 6, 7, 8
Standard sizes – round front panel 244, 300, 356, 412, 468, 542, 598, 654 mm
Standard sizes – square front panel 593, 598, 618, 623 mm
Standard sizes – diffuser 1, 2, 3, 4, 5, 6, 7, 8
Min. air flow level 20 – 230 l/s or 72 – 828 m³/h
Max. air flow level, at LWA ≅ 50 dB(A) 515 – 650 l/s or 1854 – 2340 m³/h
Temperature difference between supply air and room –10 to +10K
