. Catalog Air-water systems DID632


Wester_m 15.03.2024

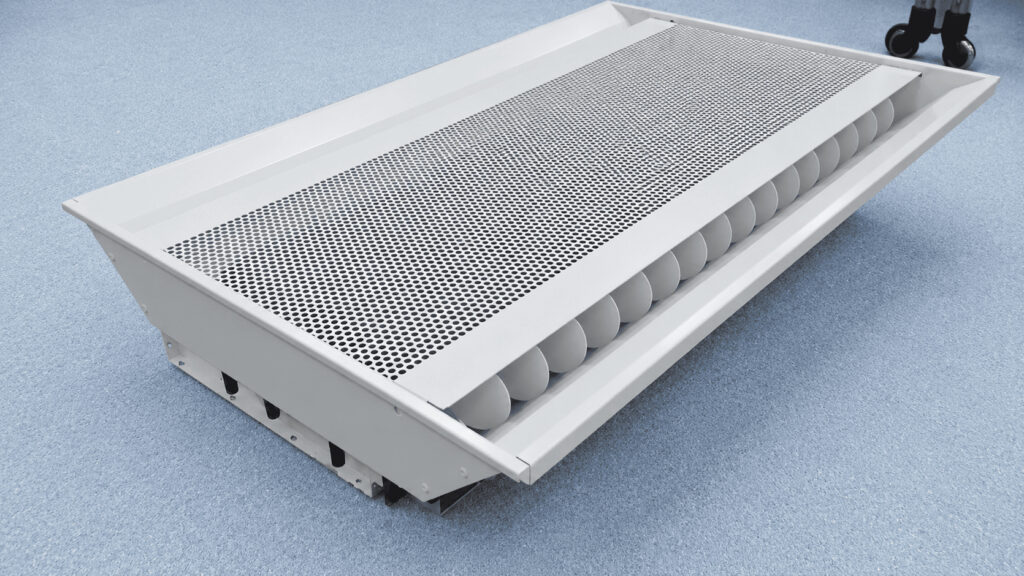

Active chilled beams with heating function for various ceiling systems. Equipped with a 2-pipe or 4-pipe heat exchanger.

Recommended for rooms up to 4.20 m high
High heating and cooling capacity with low primary conditioned air flow and low noise level
Four nozzle options for improved ejection, available upon request
Four options for hinged outer panel

Additional equipment and accessories

Automation kit
Versions for supply and exhaust ventilation are also available
Adjustable guide vanes
Heat exchanger with black powder coating
Wide range of powder coating colors from the RAL CLASSIC or NCS catalogs


Active chilled beams supply conditioned primary (fresh) air to the room using heat exchangers to provide additional cooling and/or heating.

Primary air is supplied through nozzles (4 sizes) into the mixing chambers; As a result, secondary air is forced in. Secondary air (room air) is drawn in through the ventilation grille and passes through a horizontal heat exchanger where it is heated or cooled.

Primary air is mixed with secondary air and supplied horizontally into the room through air outlet slots.

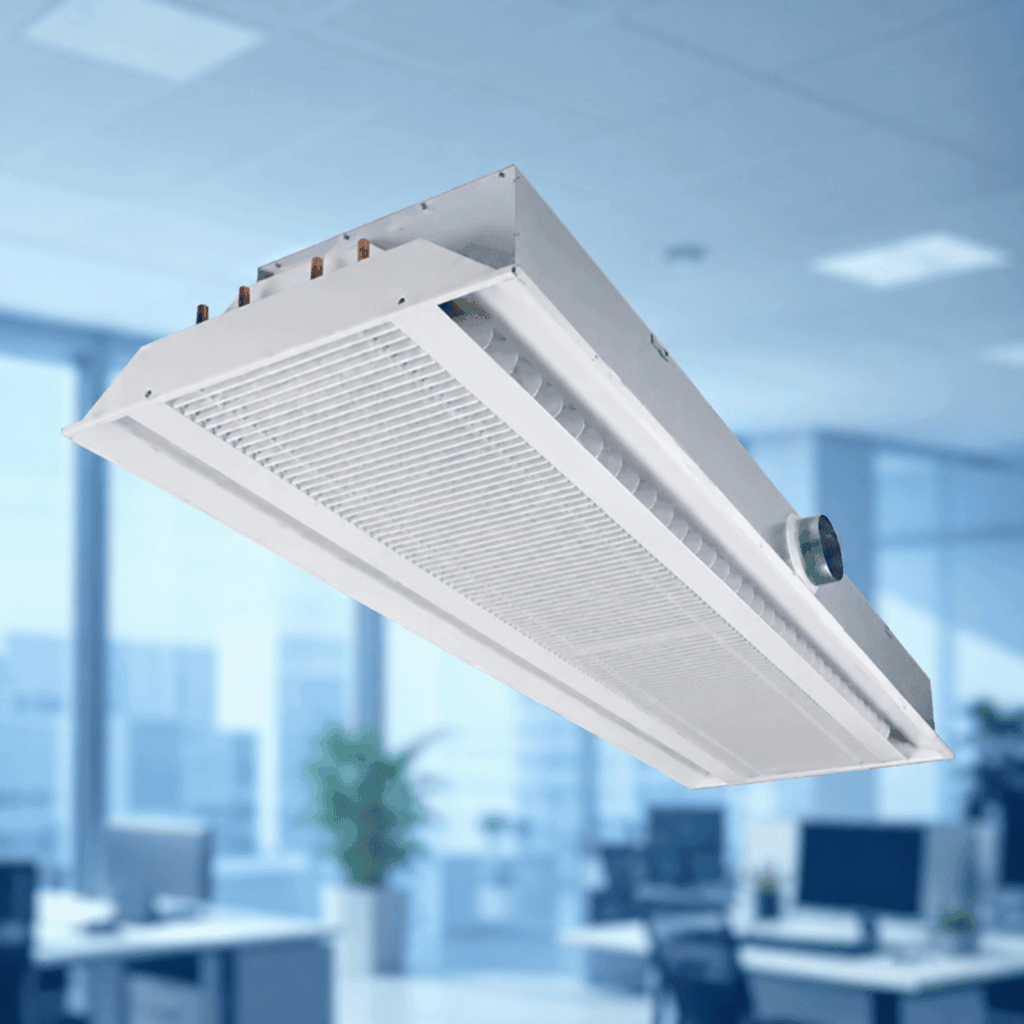

Active chilled beams of the DID632 series can be integrated into various ceiling systems, recommended for rooms up to 4.20 m in height
Particularly convenient for installation in suspended ceilings with a 600 mm or 625 mm module
2- or 4-pipe heat exchangers provide high levels of comfort with low primary conditioned air flow rates
The use of water as a heat and coolant ensures high energy efficiency
Adjustable vanes (optional) allow you to manually set the direction of air flow


Adjustable guide vanes
Four options for hinged outer panel
Horizontal heat exchanger for 2-pipe or 4-pipe system
Heat exchanger pipes are copper, Ø12 mm, without thread or with external thread G½” and a flat gasket, located at the end of the beam
Stamped inner plate with nozzles (non-flammable material)

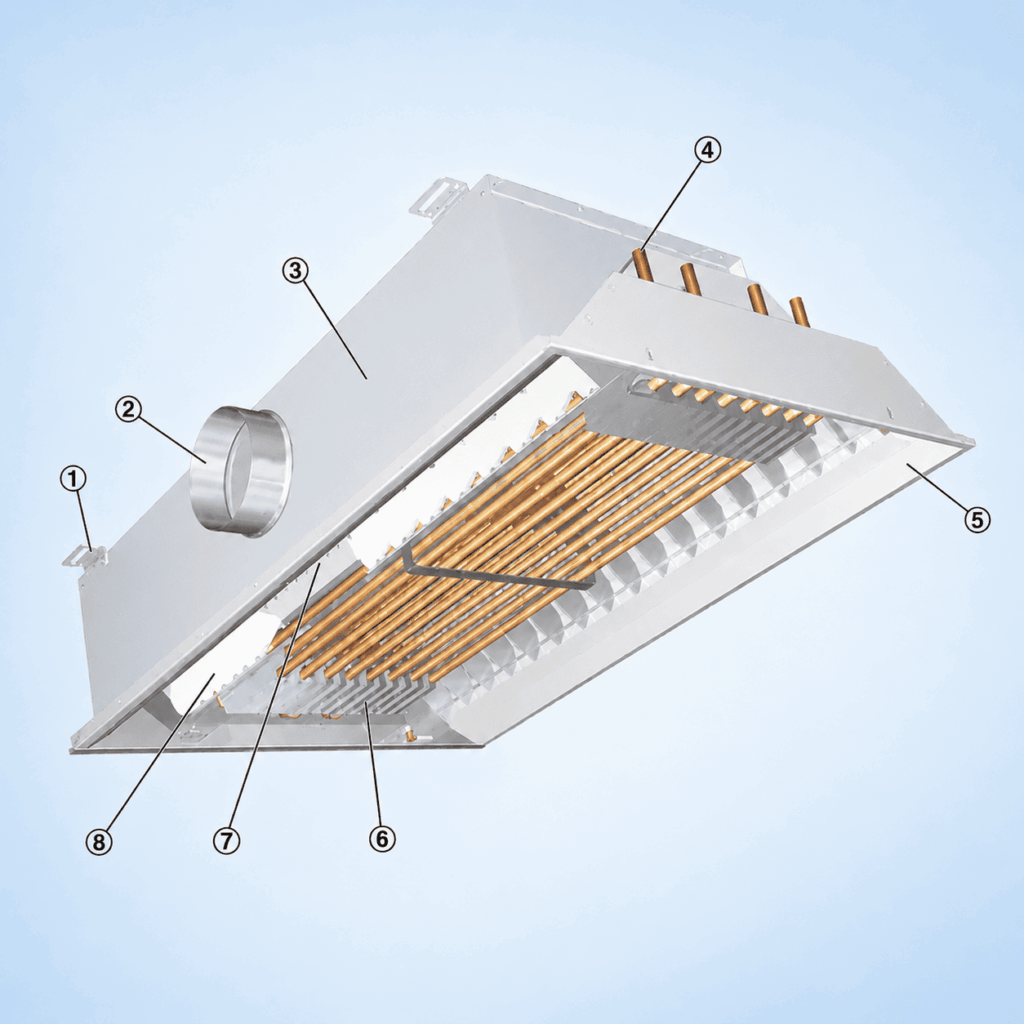

① Hanging bracket
② Primary air pipe
③ Housing
④ Water connections
⑤ Face frame
⑥ Heat exchanger
⑦ Nozzles
⑧ Air flow control slats (optional)
