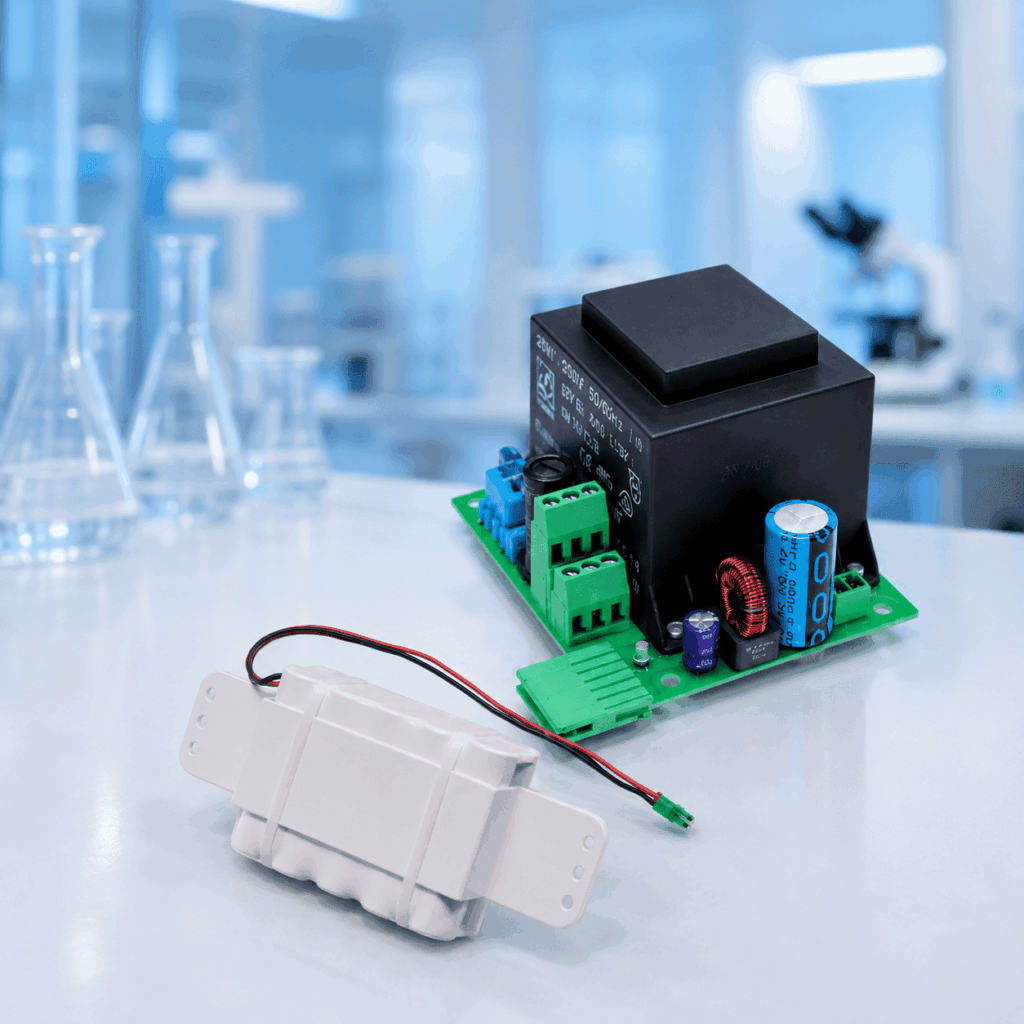

EM-TRF-USV SERIES
Expansion module for direct connection of EASYLAB TCU3 series controllers and TAM series adapter modules to a 230 V power supply network and to an uninterruptible power supply. To connect EASYLAB to a 230 V power supply and ensure uninterruptible power supply.
Peculiarities
Double terminal blocks for connecting the 230 V power supply cable
Connection to the main controller board via connector

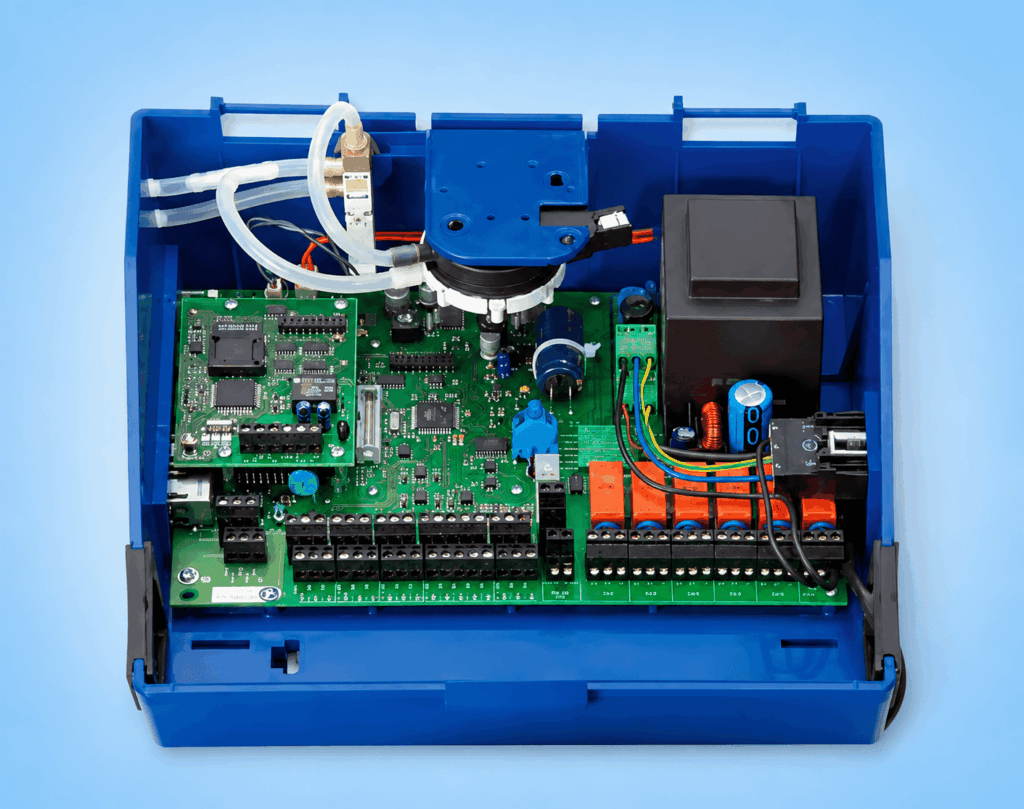

The expansion module is installed inside the housing along with the main ASYLAB components
Uninterruptible power supply for attached modules
Built-in battery chargers with charge status indicators
A power failure signal is sent to the EASYLAB control panel
You can program the controller’s actions in the event of a power failure
Application
EM-TRF-USV series expansion module for EASYLAB system
For connecting EASYLAB basic components (TCU3 controller or TAM adapter module) to a 230 VAC power supply
Power supply for base components and attached modules
Batteries provide uninterrupted power supply in case of power failure
Control and alarm even in case of power failure
Installed at the factory or when retrofitting the system inside the housing along with the main EASYLAB components
Characteristics
Ready to install, can be easily connected to the main controller board
Double terminal blocks for connecting the 230 V power supply cable
Easy connection of expansion module and EASYLAB main control board via connector
Simple electrical installation of a fume hood lighting system with a switch in combination with the EM-LIGHT extension module
Intelligent charging control with trickle charging, full discharge protection and reverse polarity protection
LED operating status indicator
You can set the controller’s reaction in case of power failure (EASYLAB TCU3 with expansion module EM-TRF-USV)
In case of power failure: light alarm on the control panel, configurable alarm signal
