VD SERIES
Ceiling swirl diffusers with a square panel, with manually or electrically adjustable guide vanes, provide optimal air distribution in the work area in cooling and heating modes
Standard sizes 425, 600, 775, 1050
Air flow level 95 – 1490 l/s or 342 – 5364 m³/h
Front panel made of aluminum with anodized finish
For supply air
For systems with variable and constant air flow
Rapid equalization of temperatures and reduction of air flow speed is achieved due to the high level of ejection
The direction of air supply is changed manually or using a drive
Ideal for rooms with high ceilings
Additional equipment and accessories
The diffuser front panel can be painted in RAL CLASSIC colors
Horizontal or vertical duct connection
The presence of an edging panel allows for horizontal air supply in cooling mode
Safety net for use in sports halls
Drives for changing the direction of air supply
Description
Ceiling swirl diffusers in air conditioning systems create a vortex supply of air for good mixing with the room air. The air flow obtained at the outlet of the diffuser allows one to achieve high ejection values, thereby quickly reducing the flow rate and leveling out the temperature difference between the supply air and the air in the room. Ceiling swirl diffusers are used for high air flows. As a result, there is a mixing of air flows in comfort zones, with a good distribution of air jets throughout the room and a small turbulent vortex in the area where people are present.
The position of the guide vanes of the VD series ceiling swirl diffusers can be adjusted. The ability to change the direction of air flow ensures operation in heating and cooling modes or when changing the air flow range. Horizontal air supply is carried out in all directions. Vertical air supply is possible in heating mode. The temperature difference between the supply air and the room can range from –12 to +15 K.
The drive (optional) adjusts the position of the blades if necessary.
Standard sizes 425, 600, 775, 1050 mm
Min. air flow level 95 – 675 l/s or 342 – 2430 m³/h
Max. air flow level, at LWA ≅ 50 dB(A) 280 – 1490 l/s or 1008 – 5364 m³/h
Temperature difference between supply air and room –12 to +15K
Characteristics
With adjustable guide vanes for high ceilings
The direction of air flow can be adjusted manually or using a drive
Horizontal or vertical duct connection
Materials and coating
Front panel made of extruded aluminum profile
Plenum box, lintel and edging panel made of galvanized sheet steel
The protective mesh is made of steel wire
Anodized front panel E6-C-0, natural color
The protective mesh is powder coated RAL9010, white
Edge panel powder coated, RAL 9006, white aluminum
P1: Powder coated, RAL CLASSIC color
Specifications
Standard sizes: 425, 600, 775, 1050 mm
Min. air flow level: 95 – 675 l/s or 342 – 2430 m³/h
Max. air flow level, where LWA ≅ 50 dB(A): 280 – 1490 l/s or 1008 – 5364 m³/h
Temperature difference between supply air and room: –12 to +15 K

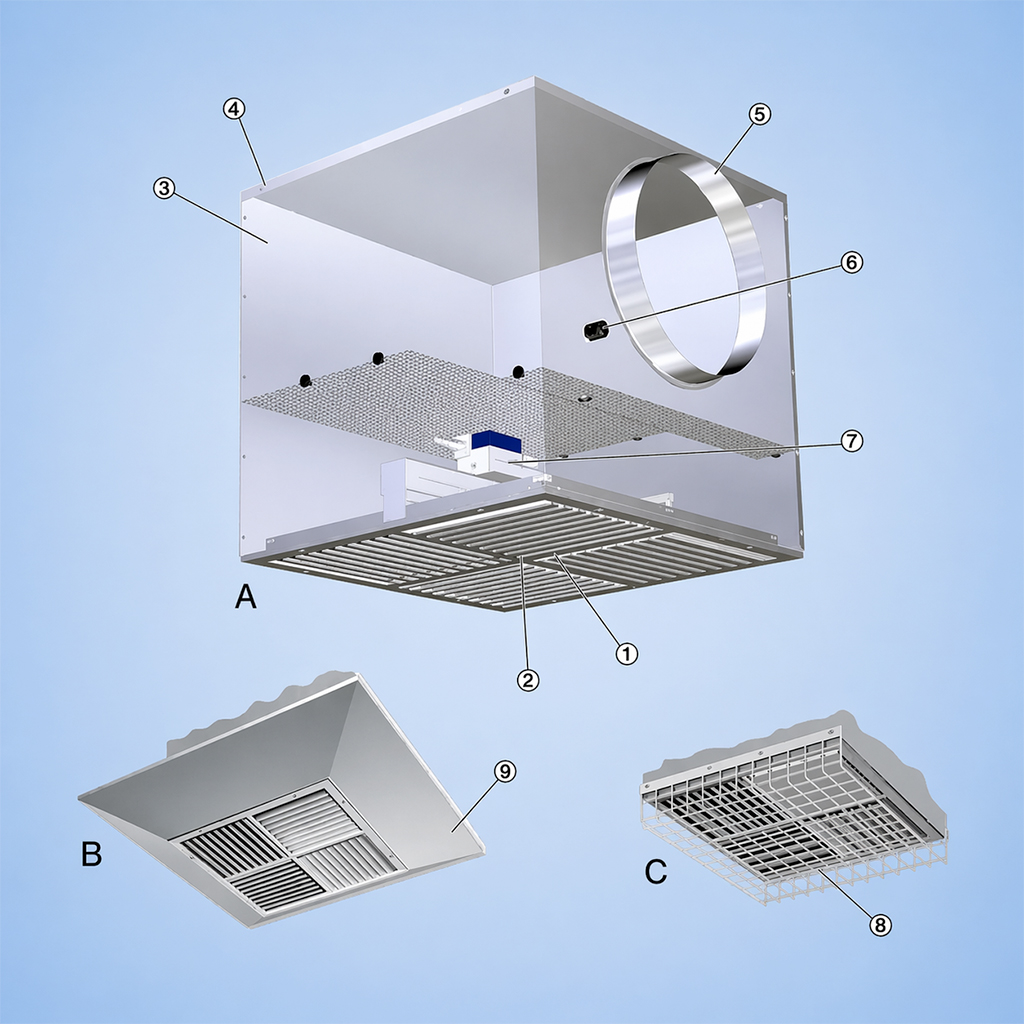

A VD-H
B VD-…-K
C VD-…-S
① Diffuser front panel
②Adjustable guide vanes
③ Static chamber
④ Hanging bracket
⑤ Connection
Optional
⑥ Cable entry
⑦ Drive and jumper
⑧ Protective mesh
⑨ Edge panel
