Description

Ceiling swirl diffusers in air conditioning systems create a vortex supply of air for good mixing with the room air. The air flow obtained at the outlet of the diffuser allows one to achieve high ejection values, thereby quickly reducing the flow rate and leveling out the temperature difference between the supply air and the air in the room. Ceiling swirl diffusers are used for high air flows. As a result, there is a mixing of air flows in comfort zones, with a good distribution of air jets throughout the room and a small turbulent vortex in the area where people are present.

Ceiling swirl diffusers of the TDF series have fixed guide vanes. Air supply is carried out in a horizontal direction in a fan-shaped manner. The temperature difference between the supply air and the room can range from –12 to +10 K.

Flap blade (optional) to balance air flow simplifies operation. The metering point and damper blade with flexible rod (optional) allow you to adjust the air flow when the front panel is installed.

To create an attractive, holistic room design, TDF series diffusers can also be used for exhaust ventilation.

Standard sizes 300, 400, 500, 600, 625 mm

Min. air flow, where ΔtZ = -6 K 10 – 42 l/s or 36 – 151 m³/h

Max. air flow level, at LWA ≅ 50 dB(A) 80 – 285 l/s or 288 – 1026 m³/h

Temperature difference between supply air and room –12 to +10K

Characteristics

Very low sound power level, ideal for comfort zones

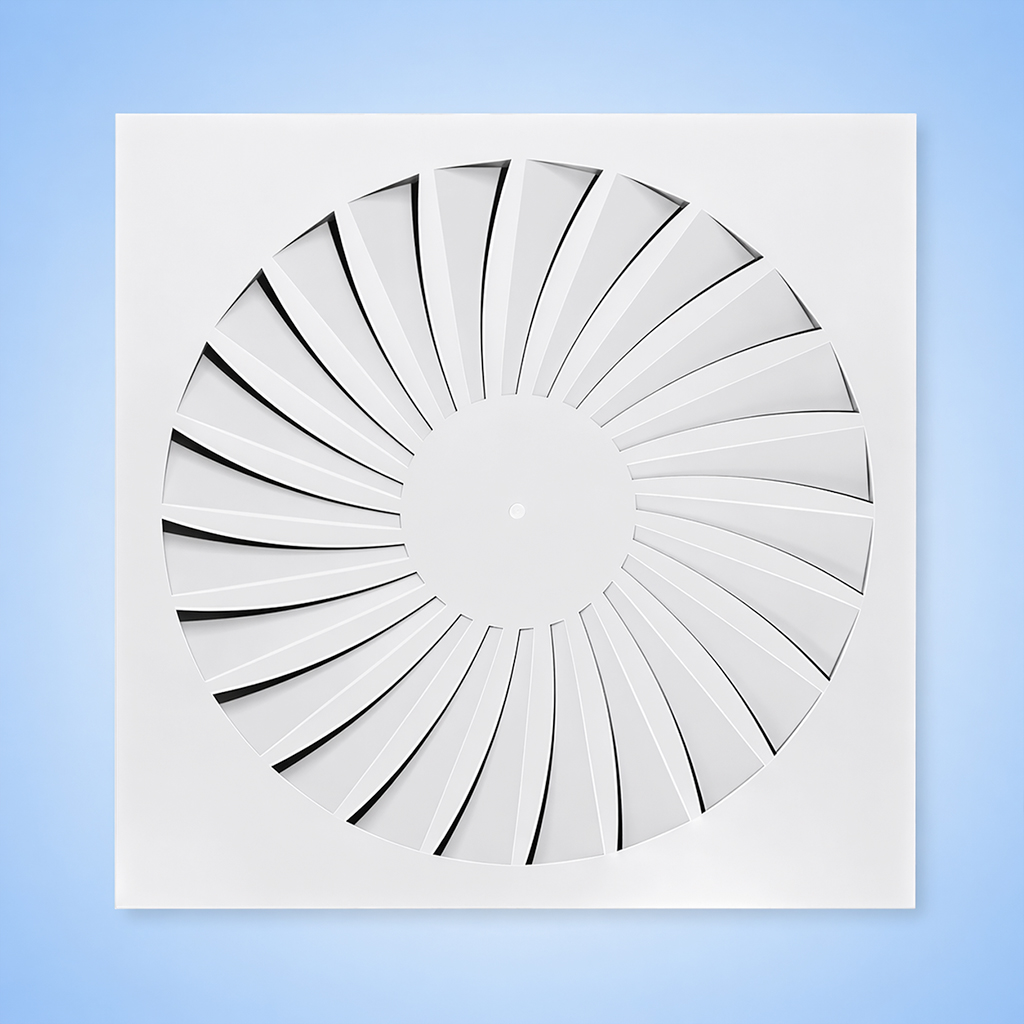

Fixed guide vanes

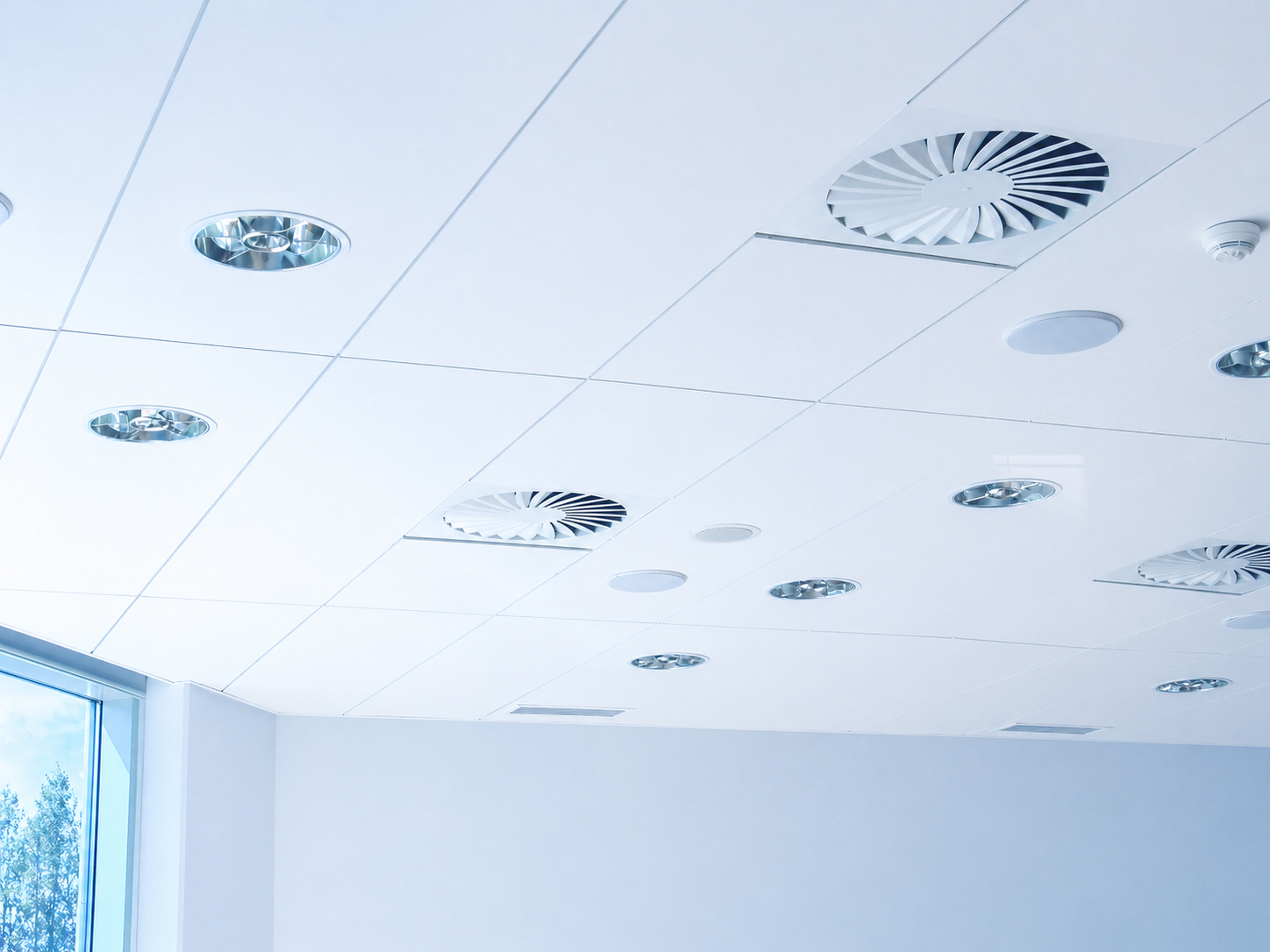

Suitable for all types of ceilings, also suitable for free hanging when fitted with an edge panel

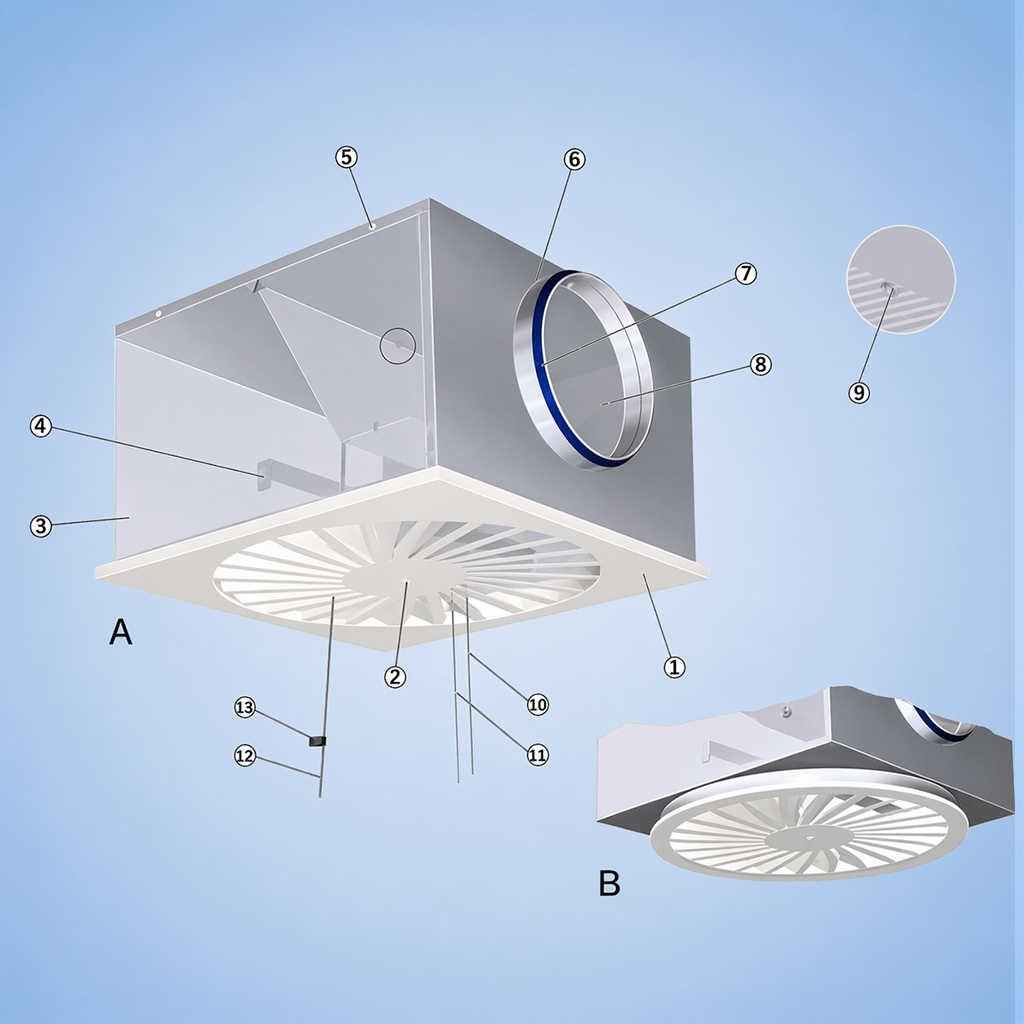

Horizontal or vertical duct connection

Materials and coating

Front panel made of galvanized sheet steel
V, H: Plenum box and bridge made of galvanized sheet steel
X: Plenum box made of plastic and galvanized sheet steel
The seal is made of rubber
The front panel is powder coated RAL9010, white
P1: Powder coated, RAL CLASSIC color

Specifications

Standard sizes: 300, 400, 500, 600, 625 mm
Min. air flow level, where ΔtZ = -6 K: 10 – 42 l/s or 36 – 151 m³/h
Max. air flow level, where LWA ≅ 50 dB(A): 80 – 285 l/s or 288 – 1026 m³/h
Temperature difference between supply air and room: –12 to +10 K
