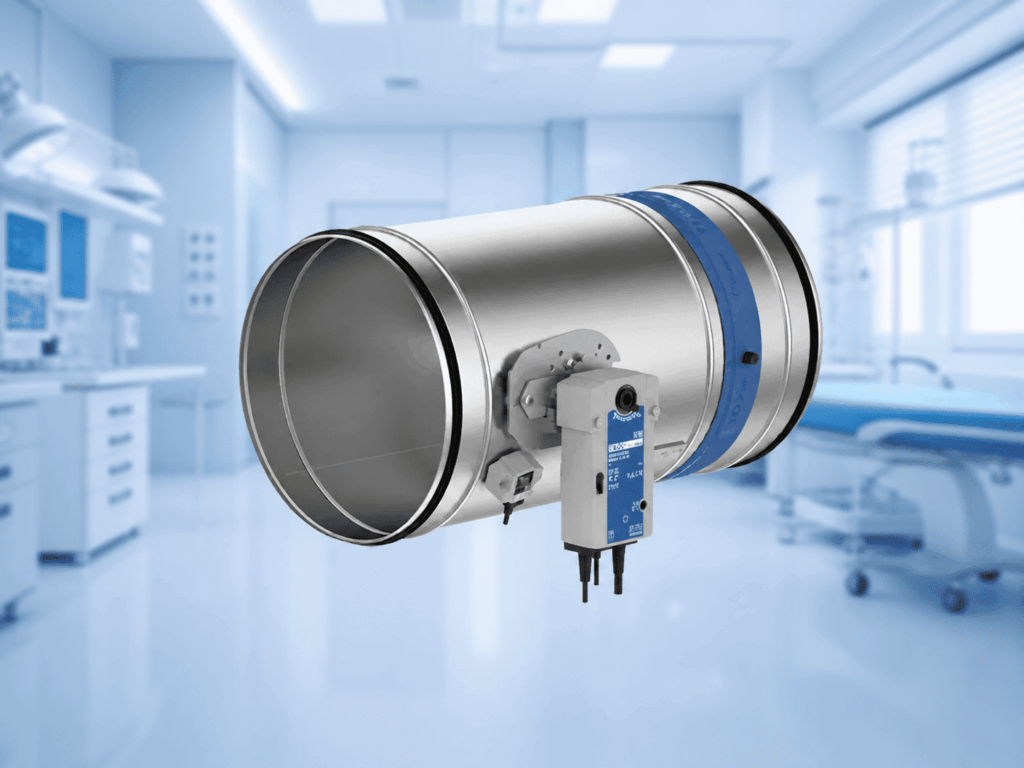

Description

When a fire occurs, fire dampers automatically close, preventing flames and smoke from spreading through the ducts into adjacent fire compartments.

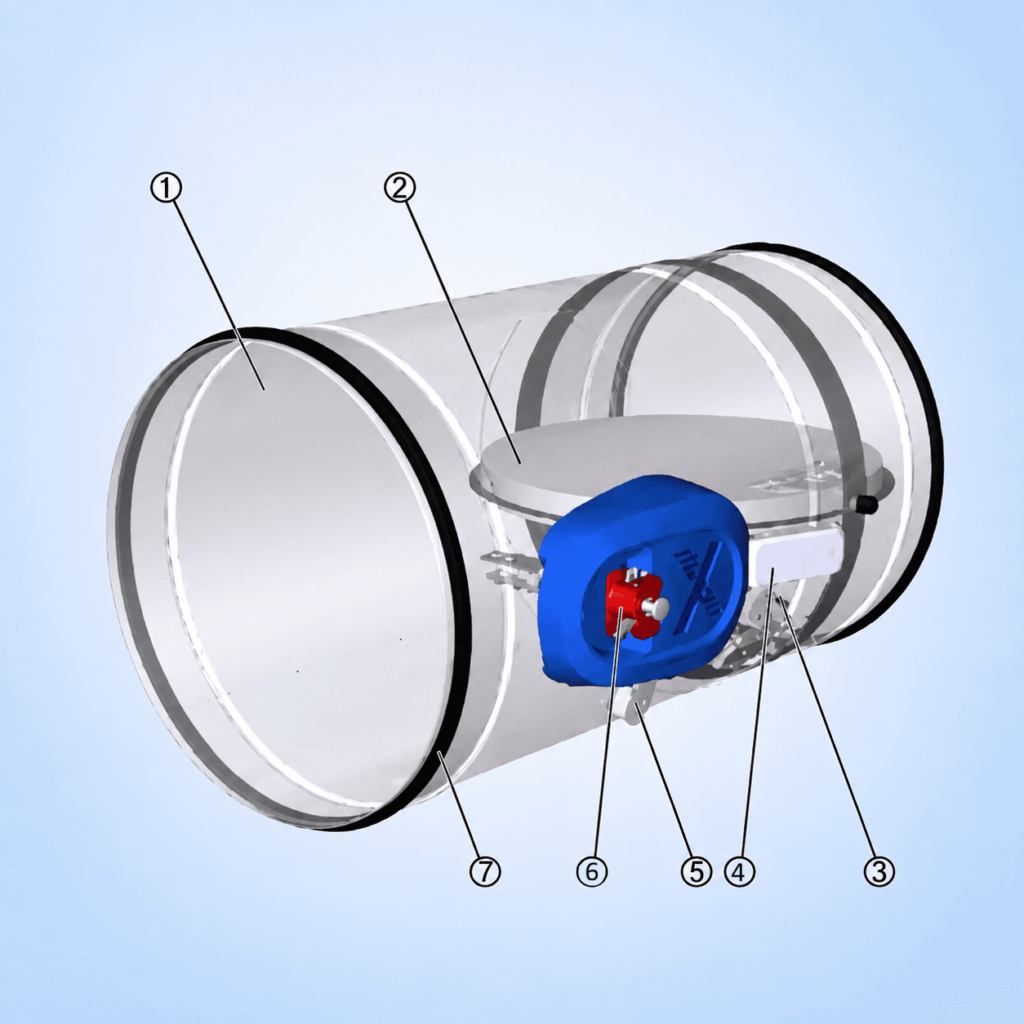

When the temperature rises to 72 C or 95 C (for warm air ventilation systems), the fusible link melts and the fire damper closes. The trigger mechanism is easily accessible and can be checked from the outside. One or two limit switches (optional) are used to indicate the valve position.

Optional equipment

Electric drive 24 V/230 V
Response temperature 72/95 °C

Optional equipment

Duct smoke detectors

Installation using mortar

In solid walls, gypsum board walls, lightweight partitions, fire compartment walls, protective partitions and walls with radiation protection;
In the walls of mines with a metal or steel frame;
In walls with a wooden frame, as well as in walls made of solid wood boards and multi-layer laminated wood panels;
In solid walls and on their surface, in combination with floors on wooden beams, as well as from solid wood pita and with modular floors (Cadolto system);
In solid wood walls, wood beams and historic wood floors;
If multiple fire dampers are installed in a solid wall, floor slab, light partition, timber frame wall or half-timbered wall, their combined cross-sectional area should not exceed 4.8 m²;
Can be installed together with FK2-EU in solid walls and floor panels, light partitions, timber frame walls, half-timbered walls and shaft walls.

Installation without the use of mortar

In light partitions and fire compartment walls with a metal frame with cladding on both sides, with TQ installation kit;
In walls with a timber frame or frame, as well as in solid timber walls and cross-laminated timber walls with TQ installation kit;
In solid wooden walls and ceilings on wooden beams with TQ installation kit.

Installation with fireproof board

In solid walls and ceilings;
In light partitions, fire compartment walls, protective partitions and walls with radiation protection with a frame made of steel or other metal;
In timber-framed walls, half-timbered structures, solid timber walls and cross-laminated timber walls.
