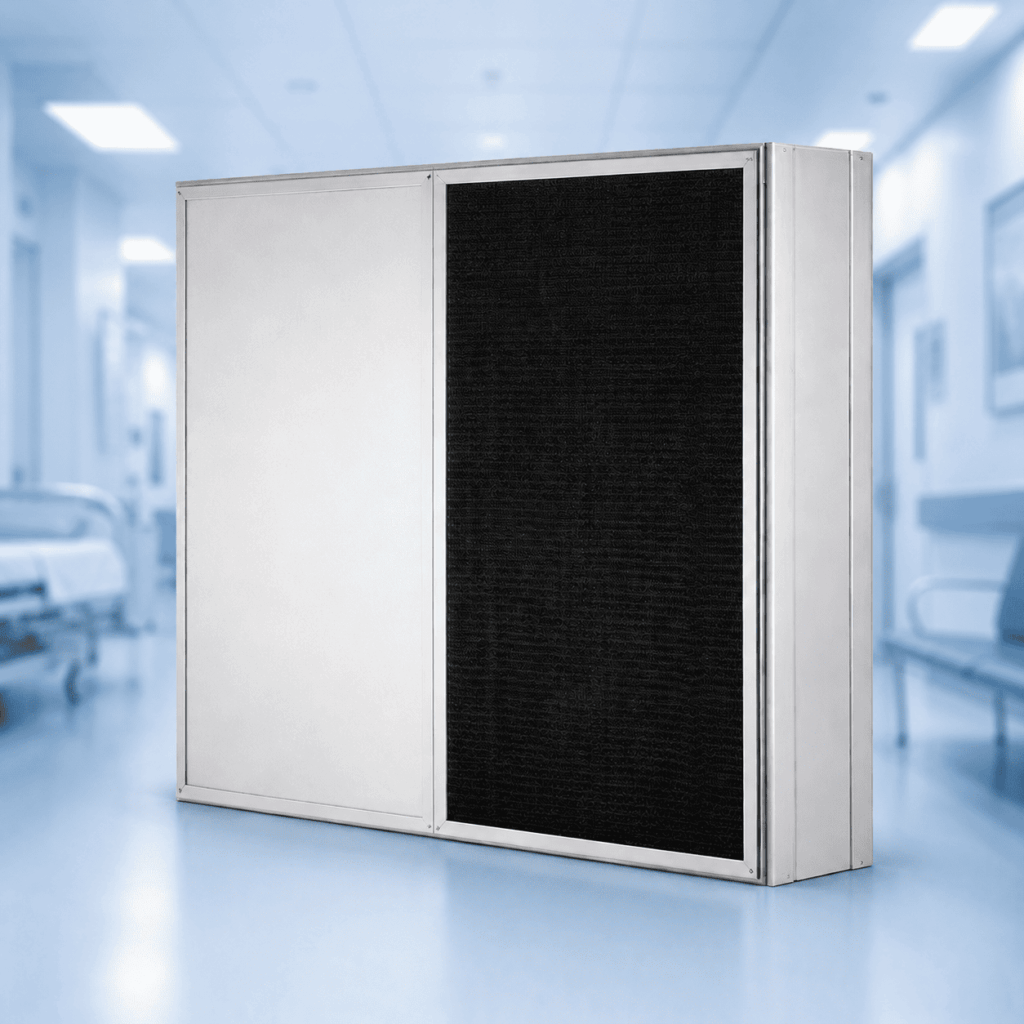

MKA SERIES
Energy-saving plate silencers with anti-resonance panels, ready for use in air conditioning systems
Reduced noise levels through effective noise absorption and resonance avoidance
High energy efficiency thanks to aerodynamically optimized frame profile (radius > 15 mm)
Acoustic performance measured according to ISO 7235
The sound-absorbing material is biosoluble and therefore hygienically safe
Sound-absorbing material covered with fiberglass to protect against erosion at air speeds up to 20 m/s
Non-flammable sound-absorbing material, fire resistance class A1 according to EN 13501
Available in standard and custom sizes
Operating temperature up to 100°C
Application
Plate silencers with anti-resonance panels, MKA series, designed to reduce the noise level created by fans and air flows in air conditioning systems
Reduced noise levels through effective noise absorption and resonance avoidance
Effectively reduces noise levels over a wide frequency range, including critical fan speeds
Hygiene certified according to VDI 6022
For use in explosive atmospheres (ATEX), zones 1, 2, 21 and 22 (outdoor)
Characteristics

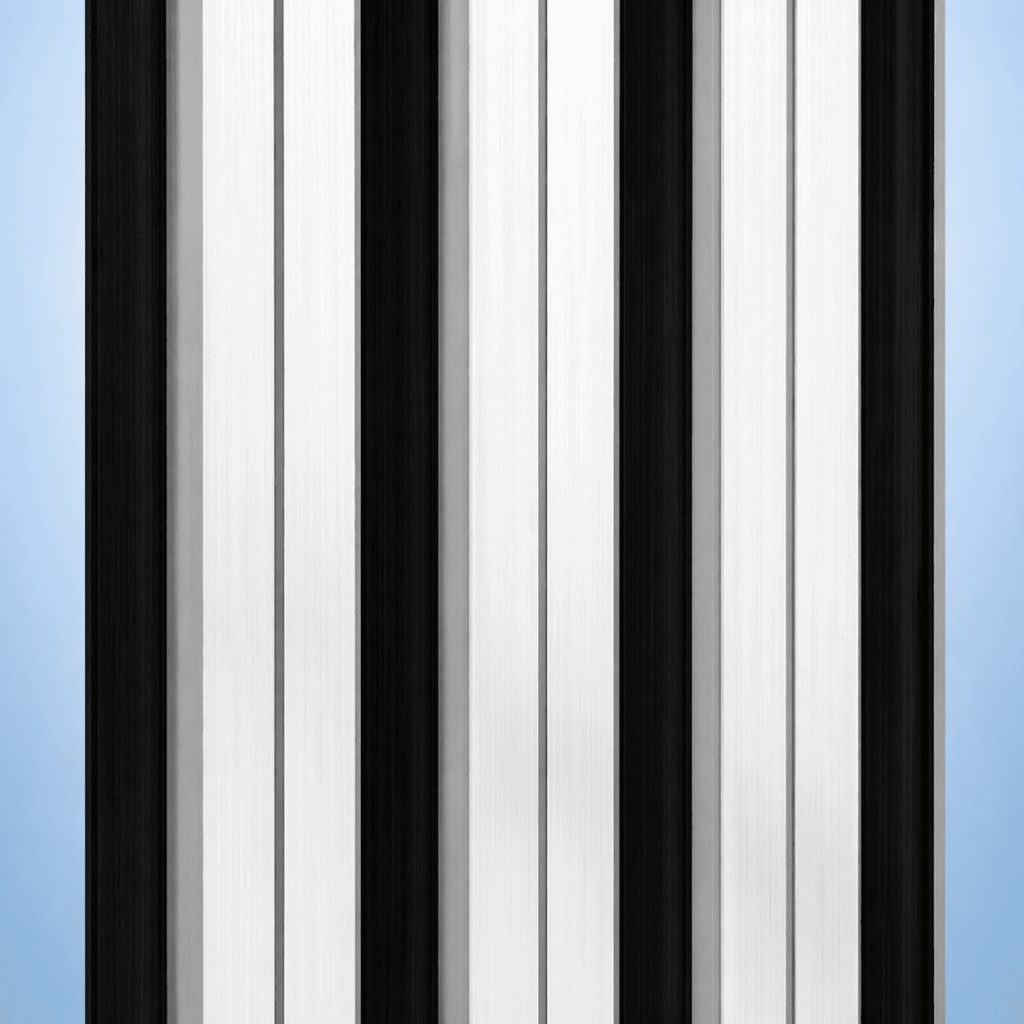

Anti-resonance panels provide a significant reduction in noise levels in the area of critical fan speeds
Reduced aerodynamic drag by 30%
High energy efficiency and compactness thanks to aerodynamically optimized frame profile
Passed tests and has a certificate of compliance with hygienic standards
Multi-section design for larger sizes
Optional equipment
Additional perforated metal plate to protect the sound-absorbing material
Powder coating
Stainless steel
Aluminum alloy (AlMg3) construction, resistant to salt water
